Flotation Machine

Flotation Machine

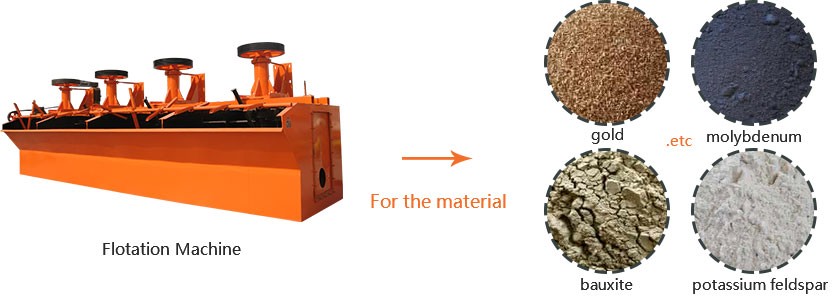

Flotation machine is used for classifying in non-ferrous and ferrous metal mineral. SF flotation cell is the mechanical agitation type, and it can draw the inspiration and the pulp. Compared with other flotation plants, its spirit is big; and the power loss is low, and the impeller lap wears lightly.

Description of Flotation Cells

Flotation cells or flotation separator is used in classifying in non-ferrous and ferrous metal mineral. SF flotation cell is the mechanical agitation type, and it can draw the inspiration and the pulp. Compared with traditional flotation cell, the power loss is low and the impeller lap wears lightly.

Working Principle of Flotation Machine

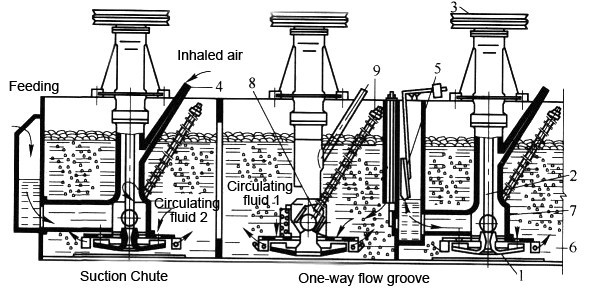

When flotation machine or flotation separator works, slurry is inhaled from the bottom of the trough to the space between impellers. Meanwhile, the low-pressure air sent by fan is sent to this area through the air distributor in the hollow shaft. After sufficient mixing, the slurry is pushed out by the impeller, and then goes to the whole trough. When the froth rises to the stable level, after the enrichment processing, froth overflows to the froth trough from the overflow weir.

Another part of ore slurry flows to lower part of impeller for the remixing with air. The remaining slurry flows to the next trough until it becomes residue.

Features List of Ore Flotation Equipment

(1)The capacity of air suction is large; the power consumption is low.
(2)Every flotation machine has three functions of air suction, slurry suction and flotation simultaneously being unique in flotation return circuit without need for any supplement and equipment; the circuit change is convenient for horizontal location.
(3)The slurry cycle is rational; the settlement of coarse sand can be reduced into full play.
(4)The regulation is convenient to equip auto and electro-controlling arrangements for slutty level.
