Primary jaw crusher

Processing capacity: 5-2200t/h
Feed opening: 150×250-300×1300mm
Feeding size: 125-250mm
Applied material: limestone, fly ash, coal powder, slag, clay. Get price list

We will provide you with the best quality service.If you are interested in our products,
you can click the button and contact us.

market@hxjq.com Send Enquiry

Overview
Parameters Type
Send Enquiry

Description of Primary Jaw Crusher

The primary jaw crusher is widely used in mining, metallurgical industry, building material, highway, railway and chemical industry. The PE series jaw crusher is widely applied in mine, metallurgy, chemical industry, building, highway, water conservancy, and light industry to crush or break various kinds of stones with compressive strength no more than 350Mpa.

Primary jaw crusher

primary jaw crusher and PE jaw crusher

Based on years' experience and technology development, Hongxing jaw crusher series is of 9 different models, which can meet most crushing requirements in primary and secondary crushing. We recently have primary jaw crusher, mobile jaw crusher, rock crusher, aggregate jaw crusher and so on.

Operation Rules of Primary Jaw Crusher:

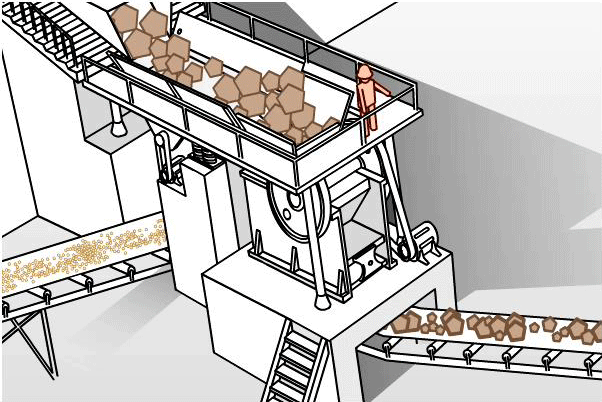

The motor transmits power through belt, drives the moving jaw do periodic motion to the fixed jaw surrounding the eccentric shaft. The angle between toggle plate and moving jaw increases when moving jaw moves up. So the moving jaw closes to the fixed jaw. The stuff will be crushed in this process.

The angle of Primary jaw crusher between toggle plate and moving jaw decreases when moving jaw moves down; the moving jaw of Jaw Crusher moves away from fixed jaw by the pulling of rod and spring, and the products after crushing will be discharged from the outlet of Jaw Crusher.

Primary jaw crusher

Jaw Crusher Price and Manufacturer

Jaw crusher prices vary greatly because there are many models. The price of the smallest PE-150*250 jaw crusher is thousands of dollars, while the price of large jaw crusher can be a hundred thousand of dollars because it's large feed opening of 300*1300mm and large weight up to 150 tons. Therefore, customers need to choose the right jaw crusher according to the actual situation. Hongxing machinery has engaged in the production and sale of various crushers for many years, and its products have exported to all over the world.

You can send us an email to market@hxjq.com or leave us a message, we will get back to you within one business day, or you can directly visit to our factory, thank you.

Parameters Type

Model	Feed opening size(mm）	Max.Feeding size (mm)	Adjustment range of discharge port (mm)	Capacity(t/h)	Rotation speed of eccentric shaft(r/min)	Power (kw)	Dimensions（L×W×H） (mm)
PE 150×250	150×250	125	10-40	1-3	268	4P 5.5	760×700×860
PE 200×300	200×300	180	15-50	2-6	260	4P 7.5	915×780×990
PE 200×350	200×350	180	18-60	3-10	276	4P 11	1000×914×1112
PE 250×400	250×400	210	20-70	5-21	300	6P 15	1100×1032×1285
PE 400×600	400×600	340	40-100	16-64	270	6P 30	1623×1736×1615
PE 500×750	500×750	425	50-100	40-110	268	6P 55	1920×1850×1920
PE 600×750	600×750	500	150-200	80-240	268	6P 55	2020×1850×1920
PE 600×900	600×900	500	65-160	50-160	254	6P 55	2530×1900×2340
PE 750×1060	750×1060	630	80-180	110-320	245	8P 110	2680×2380×2785
PE 900×1200	900×1200	750	100-200	220-380	208	8P 110	3470×2876×3330
PE1200×1500	1200×1500	1020	150-350	400-1000	180	8P 160-245	4850×3220×3680
PE1500×1800	1500×1800	1200	220-350	500-1200	180	8P 280-380	5160×3660×4248
PEX 150×750	150×750	120	18-48	8-25	320	4P 15	1170×1575×1030
PEX 250×750	250×750	210	25-60	13-35	320	6P 22	1550×1730×1470
PEX 250×1000	250×1000	210	25-60	16-52	330	6P 30	1580×2006×1390
PEX 250×1200	250×1200	210	25-60	20-61	330	6P 37	1780×2214×1430
PEX 300×1300	300×1300	250	20-90	16-105	300	6P 55	2210×2320×1723
