Roll Crusher

Introduction to Roll Crusher

Roll crusher, also known as roller crusher, belongs to traditional crushing equipment. It is mainly used for fine processing of material particles. As the main working part, the two cylindrical rollers rotate oppositely to achieve the purpose of crushing. Due to its peculiar tooth crushing structure, it is also called Teeth Roll Crusher.

The Classification

The commonly seen roller crusher falls into three types: single roll crusher, double roll crusher and four roll crusher.

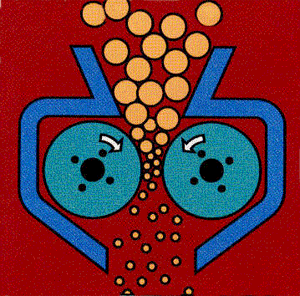

In the working process, material falls in between the two rollers, and will be crushed. Normally, the material will be discharged from the bottom.

When encountering material with high hardness, the rollers will automatically concede by hydraulic cylinder or spring which will increase the space between the two rollers, resulting in the falling of material with high hardness and uncrushable material, to protect the machine from damage. Changing the space between the two rollers can definitely control the maximum particle size of discharged material.

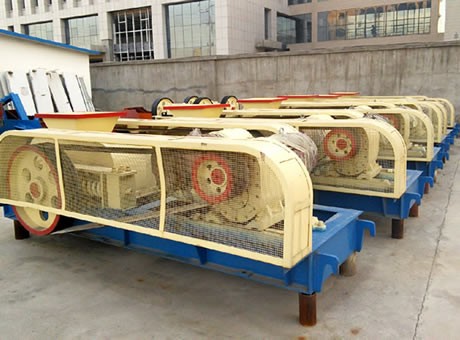

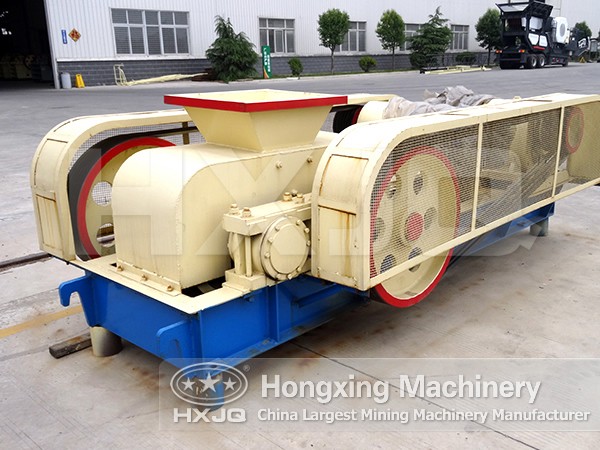

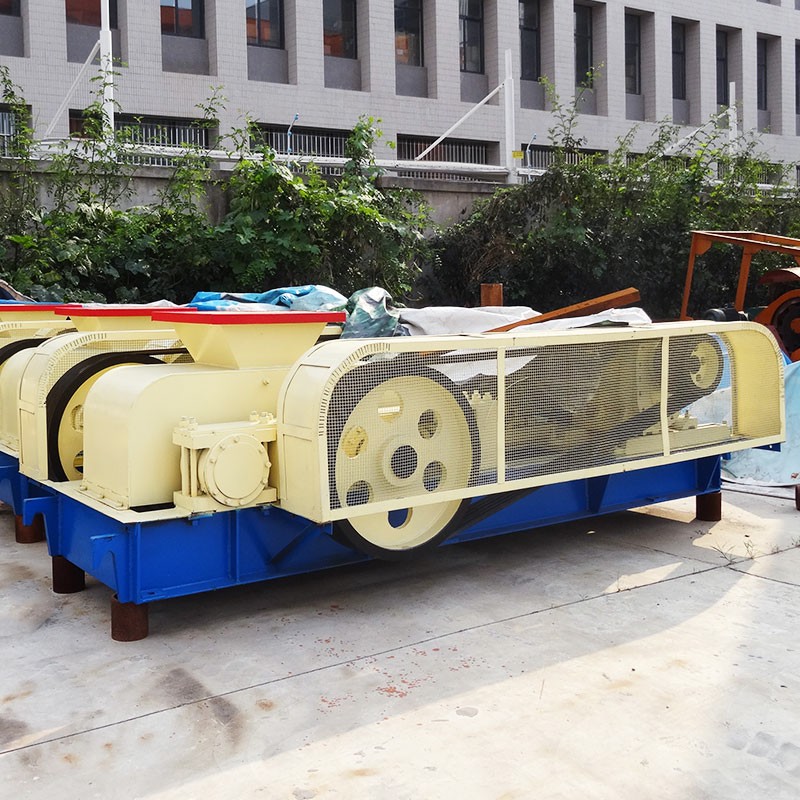

Double Roll Crusher

The double roll crusher can be applied in industrial sectors, such as cement industry, chemical industry and building materials industry for medium and fine crushing of material with medium and high hardness like limestone, coke, coal, etc.
Double roll crusher features a two roll structure with smooth surface.

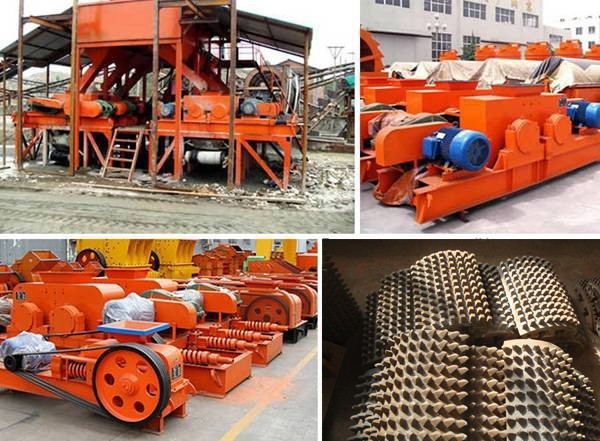

Teeth Roll Crusher

Teeth roll crusher is available in two roll and four roll series. According to the characteristics of material, coarse and fine teeth can be chosen. Four roll type teeth crusher is actually made up of two double roll teeth crushers.

Teeth roll crusher is outstanding for its large crushing capacity. In addition, the hydraulic coupling with limited distance connecting the motor and reducer prevents overload and the overload protection sensor device makes the machine safe and reliable. The hydraulic adjustment of tooth roller space and central lubrication of tooth roll bearing are additional advantages. The optimization design of tooth shape and selective crushing make roll crusher a machine with high efficiency and low energy consumption and uniform granularity.
